With the changeover to the weight-optimized tool as S2.2, the switch was made to the new Ecoline chassis with the rubber grip on top.
Unfortunately, the positions of the connection holes between the old and the new tool had to be changed. A special chassis for this tool would be very expensive. Better offer to take the S2.1 in payment and sell S2.2 for it.

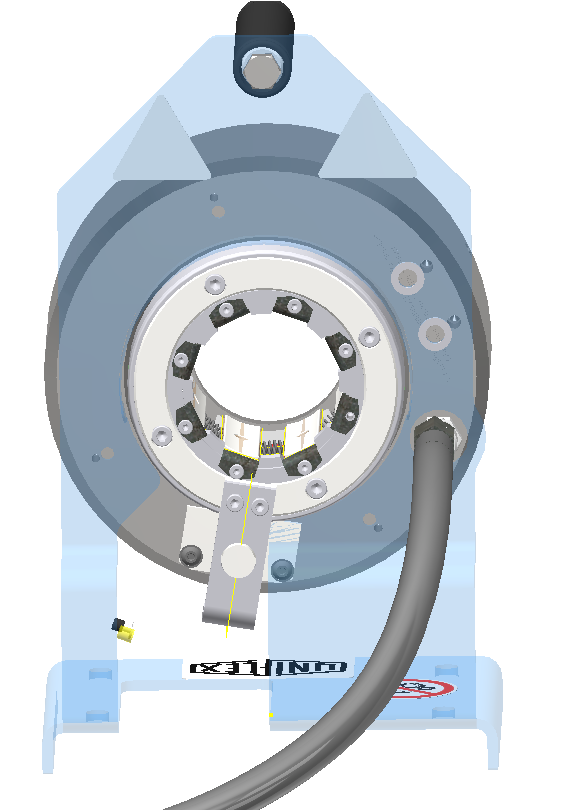

If customer wants to make adjustments himself, he has to drill holes for the tool and take away new chassis a little bit in the lower area (below in the picture the difference; new chassis semi-transparent, old tool in the background).
For this he needs essentially from us:
- 1x 262.2335
- 1x 777.130
- 1x 798.110066
- 1x 798.210007
- 1x 798.110024
- 1x 798.210005
- 1x 262.6020
